BKGP-16E Mechanized Grout Pump Singapore
Mechanized grout pump for construction grouting, concrete repair and filling work, with 15L/min discharge capacity and 240V single phase operation.
15L/minDischarge capacity
15kg/cm2Working pressure
1.5HPSingle phase motor
240V / 50HzSite power

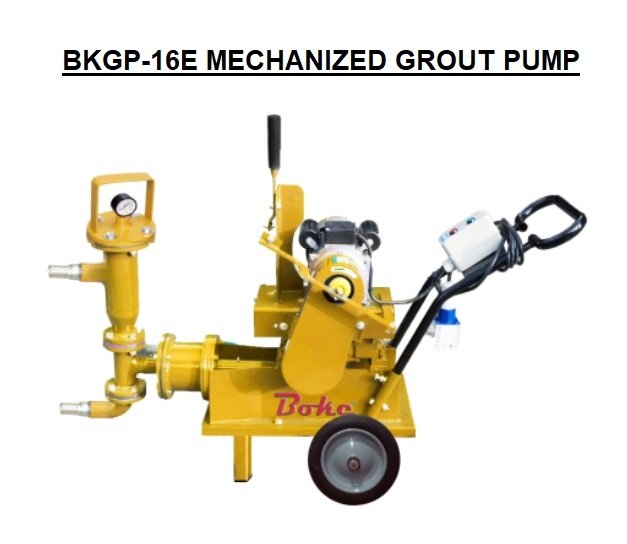

BKGP-16E Mechanized Grout Pump Singapore
The BKGP-16E Mechanized Grout Pump is designed for site grouting, concrete repair, filling work and construction maintenance applications.
It uses a 1.5HP single phase motor and supports 15L/min discharge capacity, making it a practical grout pump for contractors who need consistent pumping on site.
Technical Features
15L/min Discharge CapacitySupports steady grout pumping for repair, filling and construction grouting tasks.
Single Phase Operation240V / 50Hz power makes the unit suitable for many workshop and site environments.
32mm Inlet and OutletMatching 32mm inlet and outlet diameter supports practical grout transfer setup.
Copper Wire MotorListed with 100% copper wire, insulation class F and IP44 rating for jobsite use.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BKGP-16E |
| Discharge Capacity | 15 L/min |
| Working Pressure | 15kg/cm2 |
| Motor | Single Phase |
| Motor Model | EUMA YC90S-2 |
| Power of Motor | 1.5HP / 1.1kW |
| Voltage | 240V / 50Hz |
| Current | 8.7A |
| Rotation Speed | 2800 r/min |
| Inlet Diameter | 32mm |
| Outlet Diameter | 32mm |
| Weight | 113kg |
| Dimension | 1320 x 530 x 865mm |
| Wire / Insulation / Rating | 100% Copper Wire / Insulation Class F / IP44 |
FAQ
What is BKGP-16E used for?
It is used for construction grouting, filling work and concrete repair applications.
What is the discharge capacity?
The listed discharge capacity is 15 L/min.
What power supply does it use?
It uses 240V / 50Hz single phase power.
What is the pump weight?
The listed machine weight is 113kg.
