Reversible Travel
Forward and reverse movement reduces the need to turn the machine in confined working areas.

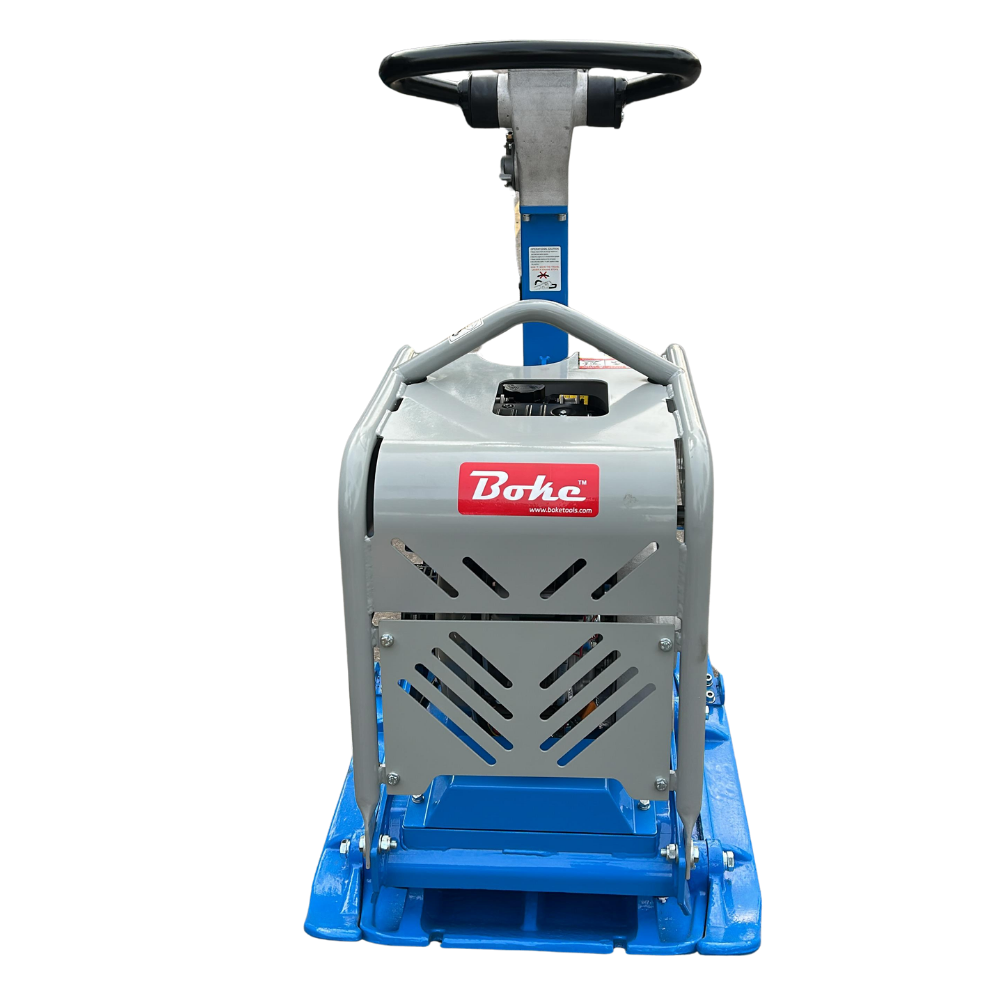

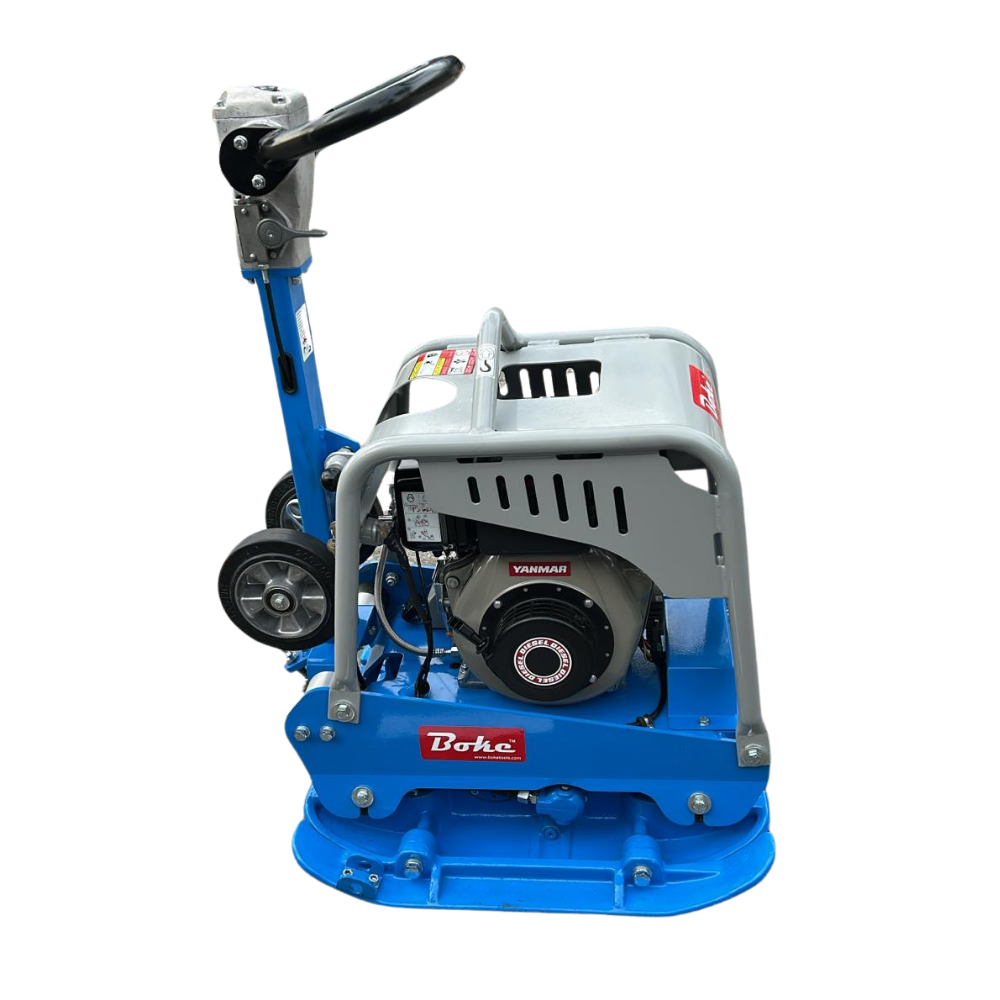

Reversible Plate Compactor Singapore | BOKE CPC-3550D
Category: Reversible Compactor
Specifications
Technical Specifications
Product Type: Reversible Plate Compactor
Model: BOKE CPC-3550D
Brand: BOKE
Engine: Yanmar L70 Diesel
Engine Type: Diesel
Max. Power Output: 5.2kW / 7.0HP
Operating Weight: 245kg
Working Width: 50 / 60cm
Plate Size: 900 x 500mm
Centrifugal Force: 35kN
Frequency: 80Hz
Starter: Electric Starter
Travel Direction: Forward & Reverse
SKU
CPC-3550D
Details
Where It Fits
Compact the pass, then reverse out
In trenches, along edges and on prepared paving bases, turning a plate compactor may be awkward or impossible. The CPC-3550D can travel forward and backward over the work area, giving the operator a practical way to repeat passes on soil, sand, gravel and granular sub-base material.
Machine Data
CPC-3550D specifications
| Specification | Details |
|---|---|
| Model | CPC-3550D |
| Product Type | Reversible plate compactor |
| Engine | Honda GX160 gasoline engine |
| Power | 5.5 HP |
| Plate Size | 540 x 440 mm |
| Compaction Force | 30 kN |
| Vibration Frequency | 81 Hz |
| Travel Speed | Up to 25 m/min |
| Weight | Approx. 160 kg |
Working Characteristics
What matters during repeated compaction passes
30 kN Force
The published centrifugal force supports compaction of granular layers used in site preparation.
Defined Ground Contact
A 540 x 440 mm plate provides the stated working footprint for each pass.
Honda Gasoline Power
The machine is specified with a 5.5 HP Honda GX160 gasoline engine.
Selection Questions
Before choosing a reversible compactor
Which materials are listed for the CPC-3550D?
The current product information lists soil, sand, gravel and granular sub-base materials.
Why use reversible travel?
Forward and backward movement is useful when repeated compaction passes are needed but there is limited room to turn the machine.
Is the CPC-3550D diesel-powered?
No. The published specification identifies a Honda GX160 gasoline engine rated at 5.5 HP.
How large is the compactor?
The published data gives a 540 x 440 mm plate size and an approximate machine weight of 160 kg.
Match the compactor to the ground and access
Share the material, work area and available access so Boke Tools can check the CPC-3550D against the job.
