KLB6500T-4400 Mobile Light Tower Singapore | 1600W 110000lm
Category: Mobile Lighting
Specifications
Details

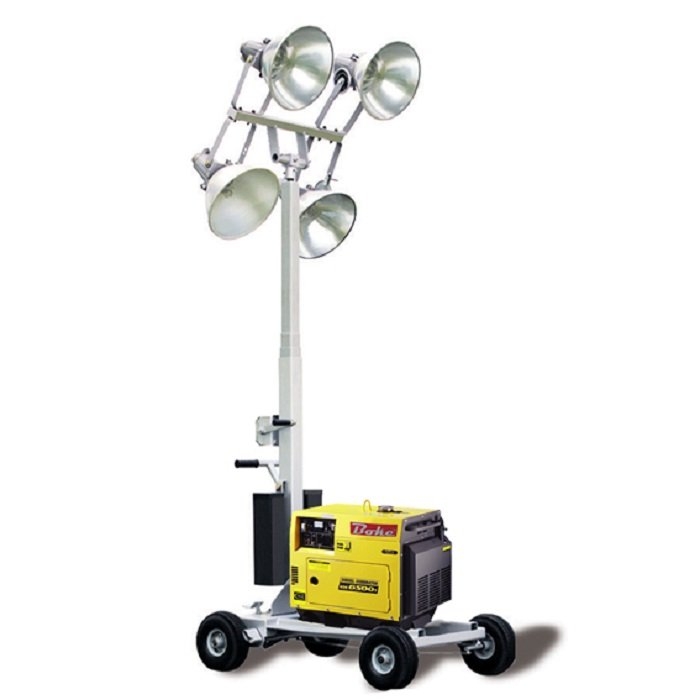

KLB6500T-4400 Mobile Light Tower Singapore
Diesel mobile light tower for construction site lighting, road works, outdoor maintenance and temporary night work.
1600WTotal lamp power
110000lmLuminous flux
15LFuel tank
158kgDry weight
KLB6500T-4400 Mobile Light Tower Singapore
The KLB6500T-4400 Mobile Light Tower is designed for temporary outdoor lighting where strong lamp output and generator-powered operation are required.
It is suitable for construction sites, road works, outdoor maintenance, events, emergency response and night operation lighting.
Technical Features
1600W Lamp PowerFour lamp setup provides listed total lamp power of 1600W.
110000lm Luminous FluxHigh luminous flux supports wide temporary lighting coverage.
Diesel Generator SetKDE6500T engine and 15L fuel tank support generator-powered lighting.
4 Stage Lifting MastLifting mast and mobile trolley support site positioning and setup.
Technical Specifications
| Specification | Details |
|---|---|
| Set Model | KLB6500T-4400 |
| Trolley Model | KLB400-4 |
| Engine Model | KDE6500T |
| Rated Frequency | 50 / 60 Hz |
| Rated Voltage | 115/230V, 120/240V |
| Rated Power | 4.5 / 5.0 kVA |
| Maximum Power | 5.0 / 5.5 kVA |
| Fuel Type | Diesel, 0# summer / -10# winter / -35# chilliness |
| Fuel Consumption | <= 360 g/kW.h |
| Fuel Tank Capacity | 15L |
| Continuous Running Time | 6 hours |
| Dry Weight | 158kg |
| Lamp Power / No. of Lamp | 400W x 4 |
| Total Lamp Power | 1600W |
| Luminous Flux | 110000 lm |
| Mast | 4 stage lifting mast |
| Lifting Limit | 2100-4990 mm |
| Dimension After Retracting | 1180 x 790 x 2100 mm |
| Inclination | <= 10 degrees |
FAQ
What is KLB6500T-4400 used for?
It is used for temporary lighting at construction sites, roads and outdoor work areas.
What is the total lamp power?
The listed total lamp power is 1600W.
What is the luminous flux?
The listed luminous flux is 110000 lm.
What engine model is listed?
The listed engine model is KDE6500T.
