Details

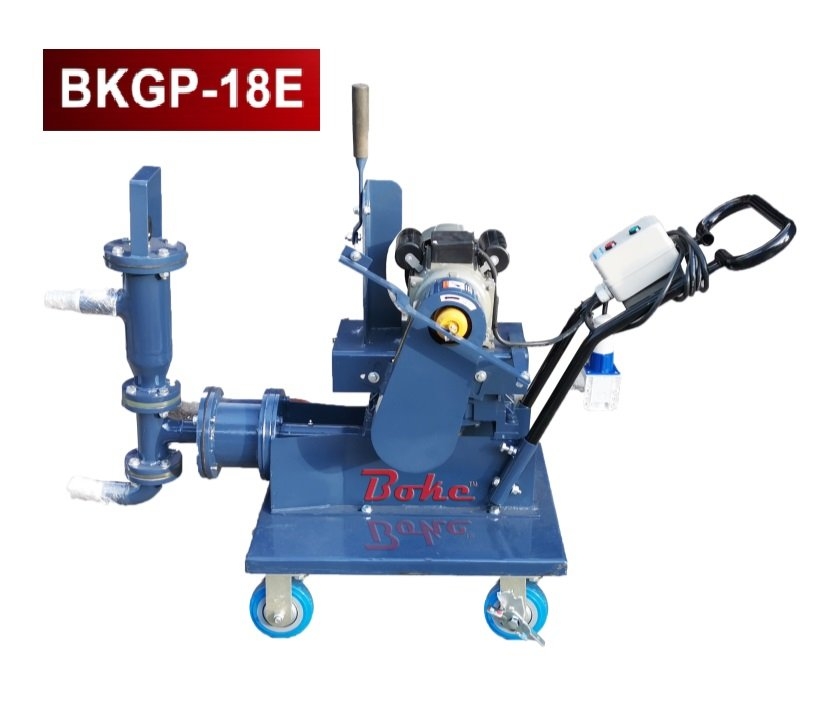

BKGP-18E Grout Pump
15L/min grout pump for construction repair and filling work, with 240V single-phase operation.
15L/min
15kg/cm2
2HP / 1.5kW
113kg
BKGP-18E Mechanized Grout Pump Singapore
The BKGP-18E is a mechanized grout pump for contractors handling repair filling, grouting and construction maintenance work. Its specification sheet lists 15L/min discharge capacity, 15kg/cm2 working pressure and a 240V / 50Hz single-phase motor.
Core selling points: BKGP-18E is a 15L/min, 2HP mechanized grout pump with 15kg/cm2 working pressure for construction grouting work.
Technical Features
15L/min Output
Steady discharge capacity for grouting work.
15kg/cm2 Pressure
Suitable for repair and filling applications.
240V / 50Hz
Single-phase setup listed on the spec sheet.
IP44 Motor
Class F insulation with 100% copper wire.
Technical Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Model | BKGP-18E |
| Discharge Capacity | 15L/min |
| Working Pressure | 15kg/cm2 |
| Motor | Single-Phase |
| Motor Type | YC90L-2 |
| Motor Power | 2HP |
| Power | 1.5kW |
| Voltage / Frequency | 240V / 50Hz |
| Current | 11.4A |
| Rotation Speed | 2800 r/min |
| Insulation Class | Class F |
| Ingress Protection | IP44 |
| Weight | 113kg |
| Dimension | 1320 x 530 x 865 mm |
| Wire | 100% copper wire |
FAQ
What is the flow rate?
15L/min discharge capacity.
What is the working pressure?
15kg/cm2.
What power supply is listed?
240V / 50Hz single phase.
What is the machine weight?
113kg.
